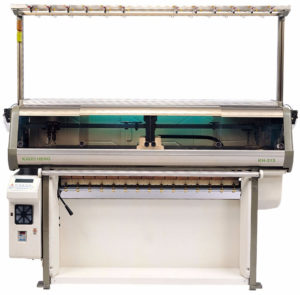

This is the compact single system, one carriage Kauo Heng flat bed knitting machine for production of trimmings and/ or jersey panels.
This knitting machine is offered in various bed length and gauges.
Sud Exports will train your operators on site for 5 days.
Sud Exports offer a full support for this machine, from installation, training, repair and after sale service.

Sud Exports KH-313

Samples

Sud Exports KH-313 SamplesSud Exports KH-313 sample
Sud Exports KH-313 sample
Sud Exports KH-313 SamplesSud Exports KH-313 sampleSud Exports KH-313 sampleSud Exports KH-313 sample

Features

YARN FEEDER

Feeders made of special steel which prevents them from shaking during knitting. This eliminates yarn breakage. They are also easy to thread the yarn through.

COMPUTER CONTROL

Computer control with LCD display, data direct input easy to key in programs, easy to operate, read and obtain information as to the performance of machine.
LCD displays the number of pieces to be knitted and how many were already knitted. All the information is very clearly displayed on LCD panel.

SPECIFICATIONS KAUO HENG KH-313
GAUGE
7G, 10G, 12G, 14G, 16G, 18G, 20G, 22G
KNITTING WIDTH
54″
CAM SYSTEM
One carriage, Single system.
Tuck on front bed & rear bed, high butt & low butt system.
Cams action system controlled with Stepping motor. (V2)
KNITTING SPEED
Max. 1.2 m/sec.
Knitting speed varies according to gauge, yarn and knitting condition.
YARN CARRIER
6 yarn carriers on 3 rails.
NEEDLE BED
Replaceable segment needle bed. (Option)
STITCH DENSITY
Electronic control with stepping motor 00 – 99 levels.
RACKING
6 levels to left or to right.
FABRIC TAKE-DOWN
Compound main roller, torque motor control,
two separate speeds adjustable each.
Control with motor 00-99 (V2)
STOP MOTION
Yarn break, knot, needle break, shock, fabric drop out, wraparound check, piece count, motor overload etc.
DRIVE
Timing belt, no oil needed, programming speed.
TOP TENSIONS
Electronic top tensions easy to thread the yarn through.
SAFETY COVER
Full safety cover for anti-noise and dust proofing.
OPERATION LAMP
Green : normal operation. (Running)
Yellow : abnormal / manual stop.
FLUORESCENT LAMP
Inside of safety cover.
POWER
220V, 1/3HP motor.
CONTROL SYSTEM
Computer control LCD display.
USB
USB equipment. (V2)
UPS
UPS function with flash memory. (V2)
WOODEN CASE
2350 x 1100 x 1790 mm. N./G. Weight 550/700 kgs.
“All the contents of this catalog are subject to change without notice.”

Please contact us for more information
